主要技術參數 Main Technical Specification

項目Items

參數 Parameter

整機質量 Overall weight

47t

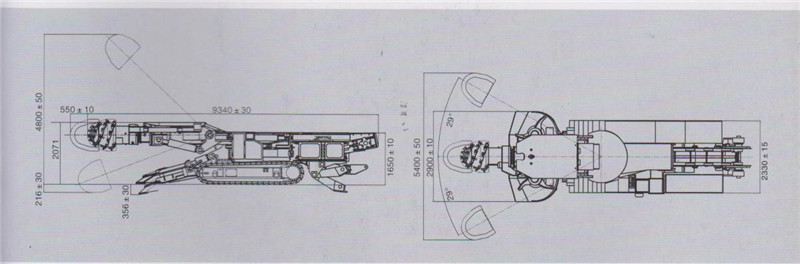

外形尺寸Overall

dimension

長 length

9340mm

寬Width

鏟板 Shovel plate

2900mm/2500mm

機身 Main body

2330mm

高Height

截割頭水平放置最高點 Cutting head is laid horizontally on the highest point

2071mm

機身 Main body

1650mm

臥底深度(伸縮/不伸縮) Undercut depth(telescopic/contracted)

216/180mm

地隙 Ground clearance of machine

250mm

定位切割范圍Range of

positoningcutting

高度(伸縮/不伸縮) Height (telescopic/contracted)

4800/4500mm

寬度(伸縮/不伸縮) Width(telescopic/contracted)

5400/5000mm

面積(伸縮/不伸縮) Area (telescopic/contacted)

26/25m2

龍門高度mm Gantry height (mm)

400mm

爬坡能力 Grade ability

± 18°

行走速度 Travelling speed

6.5m/min

接地比壓 Grounding pressure

0.148MPa

總功率 Gross power

265kW

切割電機功率 Power of Cutting motor

160/80kW

泵站電機功率 Power of electric pump motor

90kW

供電電壓 Input voltage

AC1140/660V

供電頻率 Input frequency

50Hz

切割頭轉速 Rotation speed of cutting head

48/24r/min

裝載能力 Loading capacity

星輪式Star wheel type/4.32 m3/min

履帶寬度 Crawler width

520mm

履帶外寬 Out.width of crawlers

2330mm

漲緊形式 Tensioning style

油缸漲緊、卡板鎖緊 Cylinder tensioning and snap-gauge locking

噴霧水壓 Water pressure of spraying

外噴霧水壓 Water pressure of outside spraying≥4MPa

內噴霧水壓 Water pressure of inside spraying≥2MPa

最大不可拆卸件尺寸 Max. non-removable parts size

3.38×1.20×1.52m

最大不可拆卸件質量 Max.non-removable parts mass

5500kg
